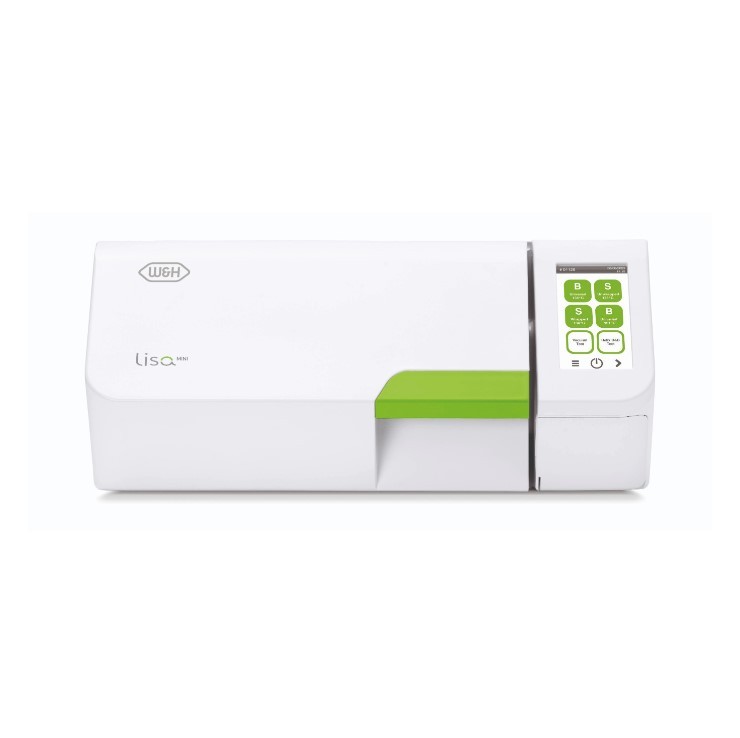

W&H Lisa Mini – B Type Vacuum Autoclave Sterilizer – 5 Litre

The Lisa Mini B Type Vacuum Sterilizer from W&H may be small, but it is mighty as it is fully equipped and has all the features and functionalities of a large type B sterilizer but in a compact size.

The Lisa Mini speeds up your daily workflow by offering incredible fast cycles and flexible usability. The compact dimensions guarantee an optimal integration into the reprocessing room. Fully equipped, Lisa Mini also offers the peace of mind of a type B sterilizer such as the Lisa, Lara or Lina sterilizers from W&H.

Speeds up your daily workflow

Sterilization of unwrapped loads in less than 9 minutes, and much more. The fully equipped type B sterilizer offers the fastest cycles in its performance class. Thanks to its small dimensions, Lisa Mini can be easily positioned in the reprocessing room and offers a wide range of applications.

Speed up cycle times

With Lisa Mini all load types can be sterilized. Thanks to the different cycles, it is possible to reprocess any instrument, wrapped or unwrapped, with extremely short cycle times.
In addition, the sterilizer offers one of the fastest type B cycles in its performance class.

Thanks to the optimised cycle profile, wrapped instruments like handpieces can be sterilized in less than 18 minutes. Unwrapped loads can be sterilized in less than 9 minutes.

Wrapped: 17′ 45”
Unwrapped: 8′ 45”

Speed up flexibility

Take advantage of Lisa Mini‘s flexibility. Thanks to its small dimensions, Lisa Mini can be easily positioned in the reprocessing room. Moreover, it offers the possibility to stack items on top. Thus, Lisa Mini offers a wide range of applications, e.g., as a complementary device for the fast reprocessing of instruments, e.g. handpieces, and as emergency back-up of tabletop sterilizers.

Enhanced traceability

The documentation is automatically saved via a high-capacity USB stick.

The barcode label printer provides additional support on traceability thanks to the opportunity for linking cycle, sterilization package and patient.

The cycle report printer ensures adequate paper documentation of the cycle.

Wi-Fi and LAN connections offer the possibility to download cycle reports directly to any PC or smart device.

Speed up with Activation Codes

Needs and requirements may change. Prepare yourself now: With the Activation Code system, additional functions can be activated to meet your changing practice needs and future requirements.

With the EliTrace feature, the sterilization process can be traced and documented down to the individual instrument or kit. Without any additional software or computer.

Speed up daily tasks

The Lisa Mini touch screen with intuitive menus offers a wide range of options to meet all your needs.

Simple cycle selection: switched on, the home screen immediately displays the cycle selection.

Risk-free cycle selection: thanks to the possibility of customising the start screen with only the sterilization cycles sed, daily activities are simplified.

User guidance: instruction is available with the help button in order to assist you during navigation.

Guided maintenance: a set of 3-D animations shows you the main maintenance operations step by step. This makes operation easy and straightforward.

Easy filling

The automatic water filling makes the handling convenient:

An integrated funnel prevents water splashes during the filling process.

An automatic water filling valve allows you to connect a demineralization system.

Manual filling and draining are no longer necessary

Features
Small, but fully equipped – All the features and functionalities of a large type B sterilizer
Ready for future – Unique connectivity and upgradeability options
Easy to navigate – Colour touch display and intuitive menu structure
Super fast – Instrument reprocessing with surprisingly short cycles
Workflow optimisation – Flexible location options and applications
Specifications

EN ISO 17665-1 Classification: B Type

Voltage: 200-240VAC 50/60Hz

Current: 10 A

Chamber volume in litres: 3

Chamber material: Stainless Steel 316

Dimensions overall (WxHxD): 440 mm x 200 mm x 666 mm (5 L)

Weight empty in kg: 24.4 kg (5 L)

Main/used water tanks: 2.5 L/0.6 L (5 L)

Air supply: 3 L – Compressed air supply required

Working Range: 3 to 7 cycles

Average air consumption: 50-60 (N)l/min (13.2-15.8 (N)gal/min) (Only for compressed air versions)

Working pressure: 5-10 bar (73-145 psi) (Only for compressed air versions)

Connection types: 5 USB ports, 1 Ethernet port, Automatic water filling kit

Warranty: 2 years or 2000 cycles
Contents

1 x Lisa Mini Autoclave 5 Litre
2 x Aluminium trays
1 x Drain hose
1 x Tray holder
1 x 8GB USB stick, Door opening tool and
Factory Test
(Compressed air fittings if required)
