Osmo Starter Kit (220V)

The Osmo from W&H offers top quality demineralized water supply to multiple sterilizers simultaneously, guaranteeing consistent, optimal performance as well as helping to extend the lifespan of your sterilizer and instruments.

Purified Water For Optimal Results

The Osmo system connects to mains water and produces a large quantity of demineralized water free from minerals and contaminants. It automatically supplies and drains water for a number of sterilizers simultaneously.

Compatible: Osmo fills and drains up to 6 sterilizers automatically and simultaneously.

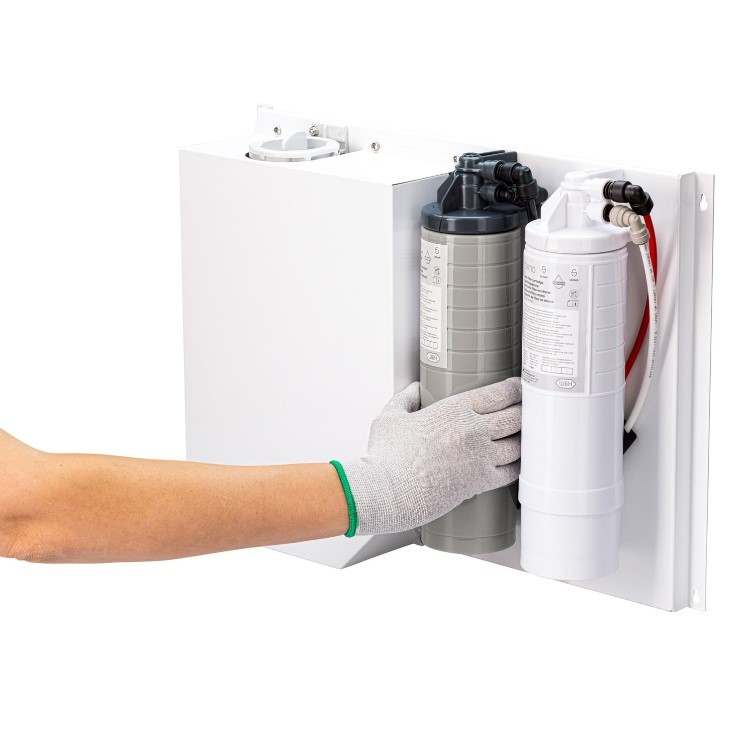

User-friendly: The screw-unscrew system makes cartridge replacement easier than ever. The cartridges can be replaced without any tools.

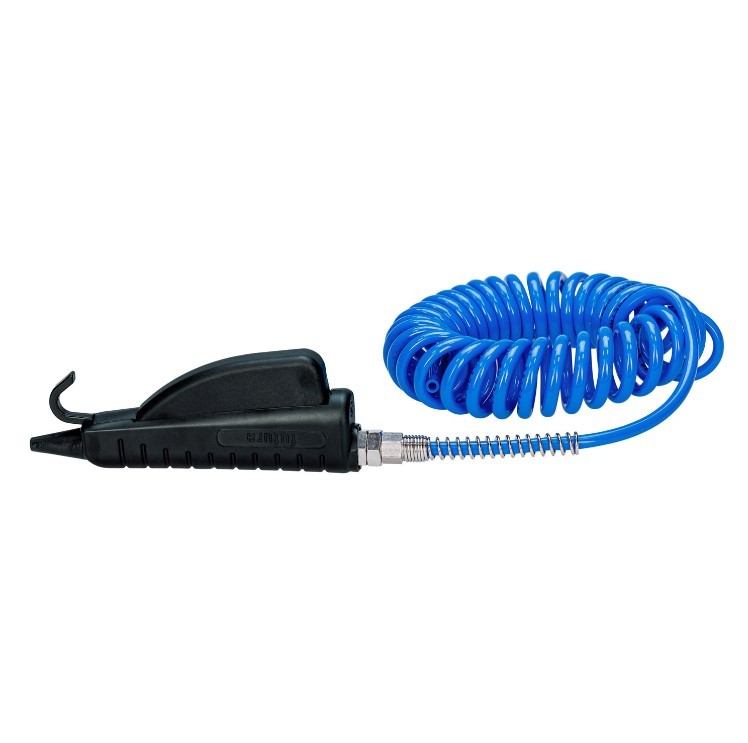

Practical: Osmo has a spray gun for manual filling of other devices or for rinsing instruments prior to sterilization.

Economical: The water storage tank has a capacity of seven litres. This makes Osmo not only the cost-effective solution for regions with poor water quality, but also for practices with a high water demand.

Safe: The purified water complies with the recommendations and guidelines for the correct reprocessing of instruments.

Features
Quick and Easy to use – The Osmo features automatic water filling function and direct drainage
Cost-effective – Keeps a busy practice running with multiple cycle options
In compliance with EN 1717
Ideal solution in areas with poor water quality
Specifications
Water treatment principle: Reverse Osmosis
Direct connection to sterilizer: Yes
Number of connectable sterilizers: Upto 6 units
Possibility of manual filling: Yes (spray gun)
Fullfiling sterilization requirements: Yes
Water quality output: 0.5–5 µS/cm
Produced water: 30 litres/1h
Volume storage tank: 7 litres
Water pressure (min./max.): 0.5–5 bar
Main device dimensions (w x h x d): 37 × 52 × 13 cm
Water tank dimensions (w x h x d): 23 cm (Ø) × 35 cm (h)
Weight: 13 kg
Electrical supply needed: Yes
Electrical power supply: 230 V AC; 50/60 Hz; 0.6 A
115 V AC; 50/60 Hz; 1.2 A
Wall mount: Yes
Backflow preventer according to EN1717: Yes
Demineralized water according to EN13060 Annex C: Yes

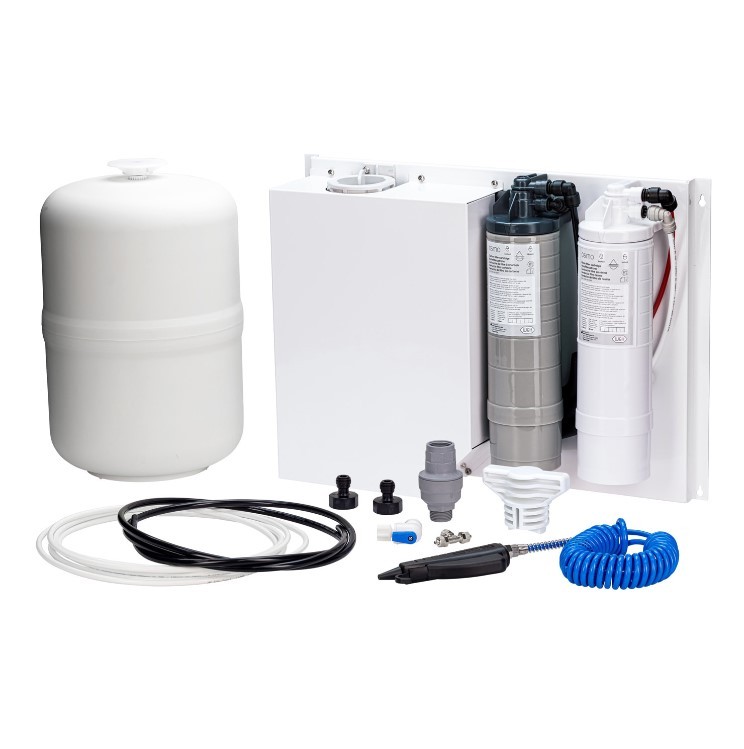

Contents
1 x Osmo Unit
Tubing
Osmotic subset with 2 filter cartridges, resin and carbon and 1 osmotic membrane
7-litre storage tank with tap
1 x Water block
1 x Tool for opening/closing osmotic vessel cap
Dowels and screws for wall fixation
Connection Kit including 2 x quick connector fitting for tube diameter 8mm
Inlet + outlet tubes
Water dispenser kit with spray gun
